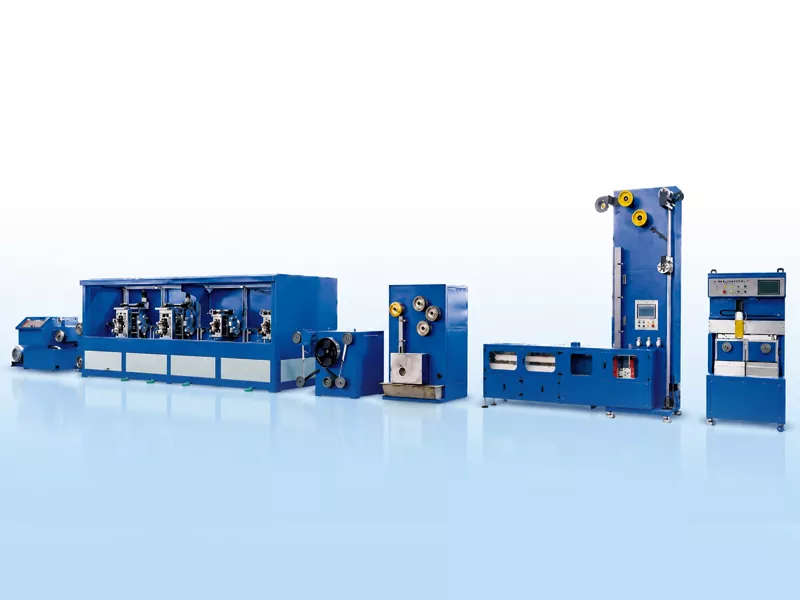

PV Busbar Ribbon Production Line

A haziri Line Production Busbar PV Busbar ka ọ na-aga n'ihu na-ahazi waya ọla kọpa na-enweghị oxygen na TU1 n'ime eriri rịbọn nwere mkpuchi dị elu nkenke. Ahịrị ahụ dabara adaba maka rịbọn njikọ njikọ PV, rịbọn busbar na mmepụta rịbọn busbar na-egosipụta.
Ahịrị zuru oke na-ejikọta eserese waya, ntụgharị nkenke, mgbakasị ahụ na-aga n'ihu, ọgwụgwọ flux, mkpuchi tin na-ekpo ọkụ, na iwere akpaaka. Ọ na-enyere ndị na-emepụta rịbọn PV aka ịchịkwa obosara na nha nha, ịdị mma mkpuchi tin, nkwụ kwụ ọtọ, na ikuku ikuku.
Ahịrị mmepụta rịbọn busbar GRM dị ihe dị ka mita 26 n'ogologo yana obosara 3 m, yana mkpokọta ahịrị dị ihe dị ka tọn 14. Ọsọ imewe nwere ike iru ruo 150 m/min, dabere na nha waya ọla kọpa, akụkụ rịbọn emechara, ọsọ tinning, na usoro iwere. N'okpuru ọnọdụ mmepụta ihe, mmepụta kwa ọnwa nwere ike iru ihe dịka 60-80 tọn.

Zipu ajụjụ

Nkọwa ngwaahịa

Site na waya ọla kọpa ruo Ribbon Busbar Emechara

PV Busbar Ribbon Production Line na-ejikarị waya ọla kọpa dị ka akụrụngwa. A na-ebu ụzọ dọta waya ahụ na dayameta achọrọ maka ịtụgharị, wee kpụzie ya ka ọ bụrụ rịbọn dị larịị site na ntụgharị nke ziri ezi nke ọtụtụ ihe. Mgbe ọ gafechara, eriri ọla kọpa na-agafe n'ọgba aghara na-aga n'ihu iji dozie ihe eji arụ ọrụ ya, na-esote ọgwụgwọ flux na mkpuchi tin na-ekpo ọkụ. N'ikpeazụ, a na-emerụ rịbọn ahụ emechara site na usoro ntinye akpaaka na spools ma ọ bụ pancake.

Igwe ihe osise

A na-adọta waya ọla kọpa na-anwụ na dayameta nke 2.6-3.0 mm, dị njikere maka ịtụgharị.

4 Mpempe akwụkwọ mpịakọta

A na-atụgharị waya ọla kọpa dị okirikiri ka ọ bụrụ rịbọn dị larịị, na-enwe obosara na-achịkwa nke ọma na ọkpụrụkpụ ziri ezi.

Na-ewe iwe

A na-eji mkpirisi mkpirisi mkpirisi mee ihe site na nchebe gas na-adịghị agwụ agwụ yana na-ekesa mmiri na-adị jụụ iji meziwanye ihe eji arụ ọrụ rịbọn ọla kọpa.

Mkpuchi Tin

A na-eji mkpuchi tin na-ekpo ọkụ na-ekpo ọkụ. Mma ikuku na-achịkwa ọ̀tụ̀tụ̀ oyi akwa tin, na ndị fan jụrụ oyi na-enyere aka mee ka ịdịmma elu ahụ guzosie ike. Otu akụkụ tin mkpuchi ọkpụrụkpụ: 0.01-0.025 mm.

Coil Chang akpaaka

Ọrụ nhọrọ gụnyere servo traversing, akpaka spool mgbanwe, ịkpụ akpaka, na teepu akpaaka.

Nweta nkenke

Ntugharị spool: ruo 30kg.

Pancake eriri igwe winding: nhọrọ 1-2 n'arọ.

R&D na Patent

Kemgbe 2015, GRM gara n'ihu na-emepụta akụrụngwa nrụpụta maka rịbọn njikọ njikọ PV na rịbọn busbar. Companylọ ọrụ ahụ enwetala ikike ikike teknụzụ dị iche iche metụtara ntụgharị nkenke, ntinye ahịrị mmepụta, yana usoro nrụpụta rịbọn PV.

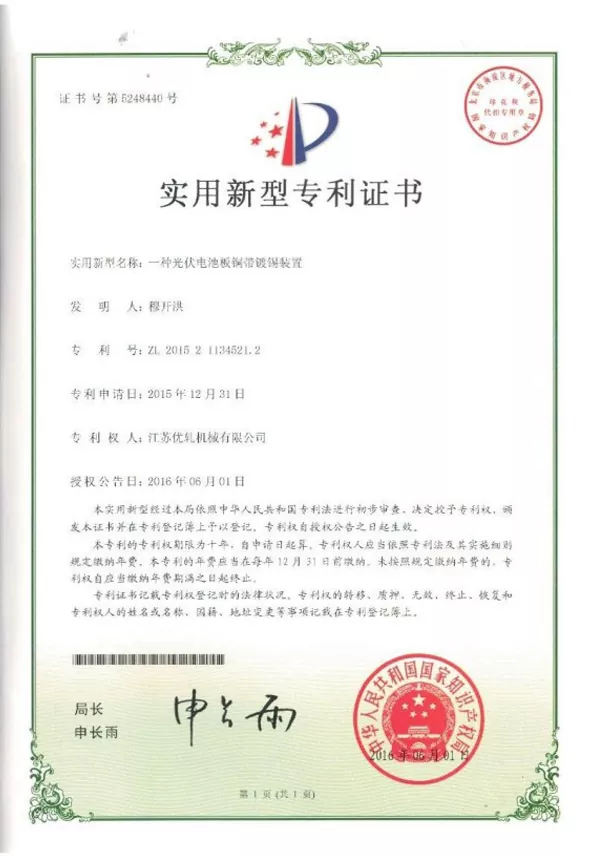

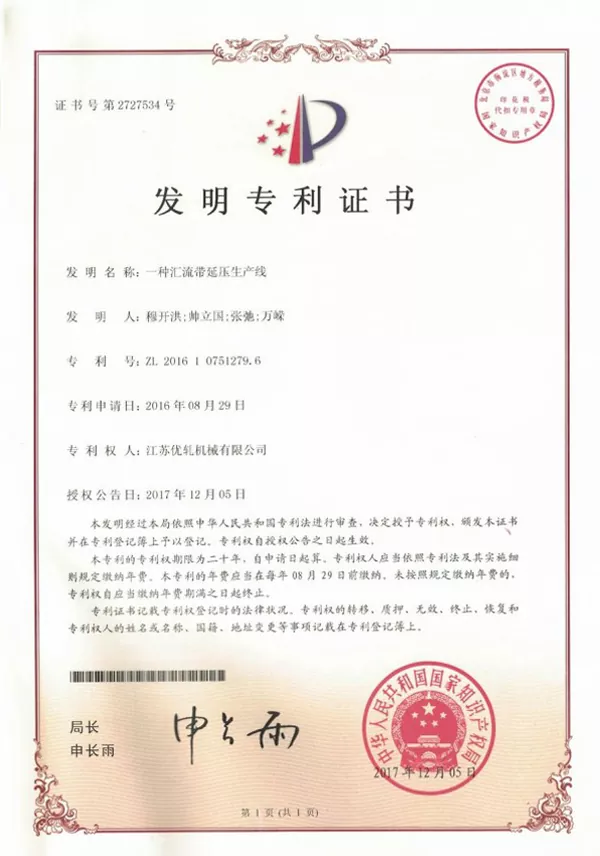

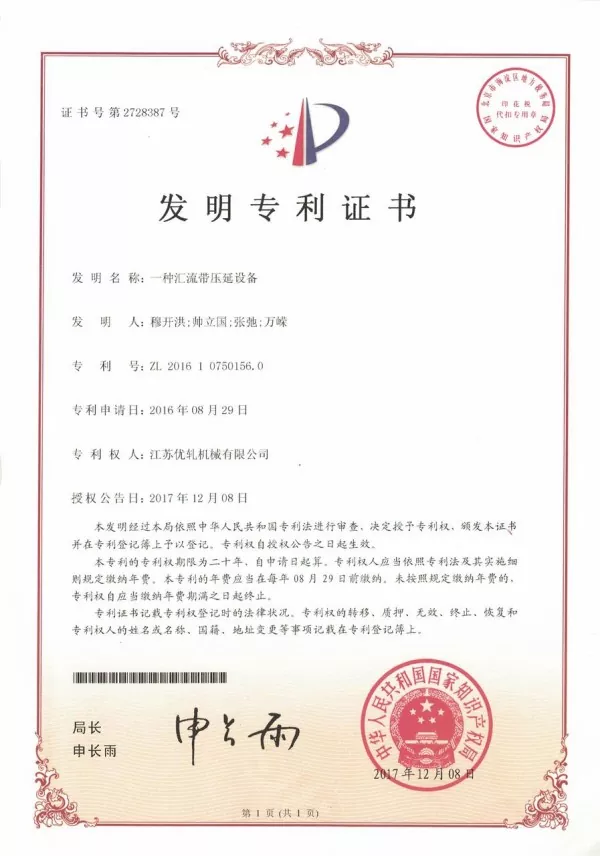

Teknụzụ GRM nwere ikike maka ngwa nrụpụta Ribbon PV

Atụmatụ igodo

Mmepụta na-aga n'ihu site na ntinye waya ọla kọpa ruo na nrụpụta rịbọn busbar nwere mkpuchi agbachachara.
Nkwekọrịta n'akụkụ emelitere, ịdị n'otu mkpuchi na ịdị mma ikuku.
Nchikota obi erughị ala na nnabata akpaaka na-enyere aka belata nkwụsị mmepụta na ntinye aka.
Na-akwado ma rịbọn busbar ọkọlọtọ yana nrụpụta rịbọn busbar na-egosipụta maka ihe dị iche iche chọrọ ihe modul PV.
Na-enye ndị na-emepụta rịbọn PV ihe ngwọta mmepụta ihe jikọtara ọnụ na-elekwasị anya na njikwa usoro, nkwụsi ike ngwaahịa, na mmepụta mmepụta ihe.

Ajụjụ a na-ajụkarị

1.Kedu oke nha ngwaahịa emechara?

Ogologo obosara: 3-8 mm.

Ọkpụrụkpụ emechara: 0.2-0.4 mm.

2.Gịnị bụ oke nnabata na n'ibu?

Nlegide obosara: ± 0.085 mm.

Nlegide ịdị arọ: ± 0.01 mm.

Ike nkwụsị: ≥260 MPa.

Ike mpụta: 90-130 MPa.

3.Kedu usoro mkpuchi tin ka a na-eji?

Ahịrị ahụ na-eji mkpuchi tin na-ekpo ọkụ na-ekpo ọkụ, yana mkpuchi zuru oke gburugburu rịbọn, gụnyere akụkụ abụọ.

4.Kedu ka esi atụ obosara ngwaahịa na ọkpụrụkpụ?

Ihe nkwụnye nke anọ nke igwe igwe na-akpụgharị ihe anọ nwere sistemu nha laser abụọ, otu maka nha obosara yana otu maka nha nha. Enwere ike igosipụta data nha na HMI.

5.Kedu ihe enwere ike ịhazi?

Emebere Line Production Ribbon PV Busbar maka waya ọla kọpa na-enweghị oxygen TU1. Enwere ike ịnye nhazi ahaziri iche dịka alloys ọla kọpa dị iche iche, akụkụ ngwaahịa, yana ihe achọrọ rịbọn pụrụ iche.
